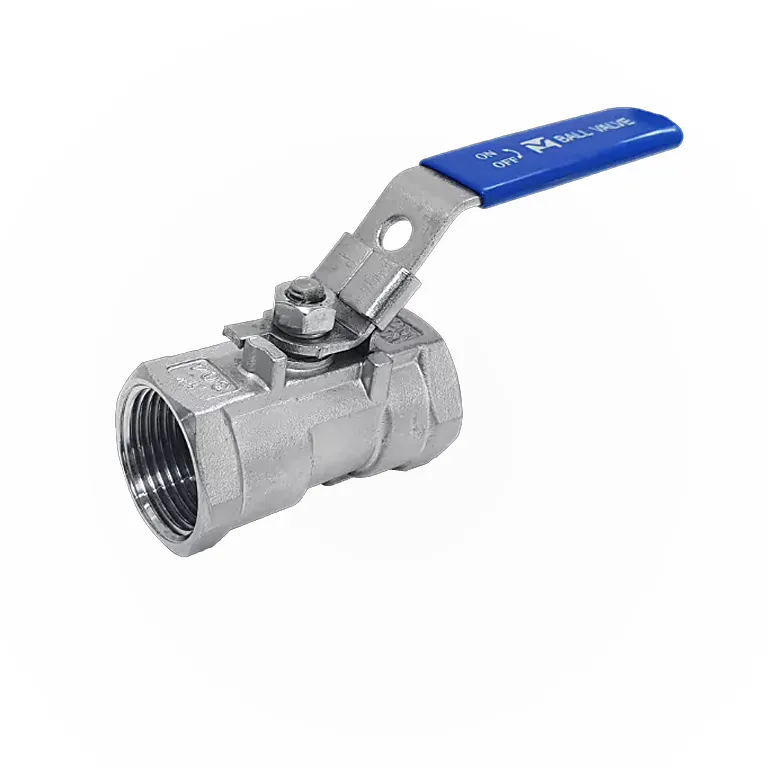

1-piece body ball valve with lock open feature. IC design for component interchangeability. Prevents accidental closure. 6000 PSI. Sizes 1/4″ to 2″. Investment cast SS/CS. SKU: HPBV207.
Product Description
Ensure safe, uninterrupted flow control with the 1 PC Design (IC) with Lock Open Ball Valve (SKU: HPBV207) . Engineered with a one-piece body construction and interchangeable components (IC), this valve offers exceptional strength, minimal leak paths, and a compact footprint. The integrated lock open mechanism allows the valve to be securely fastened in the open position using a padlock, preventing accidental closure or unauthorized operation—critical for safety-critical applications such as emergency shutdown systems, continuous process lines, and equipment isolation. The female x female (F x F) threaded ends enable direct mounting onto male pipe connections. Manufactured from investment cast Stainless Steel or Carbon Steel for superior dimensional accuracy and surface finish. Rated for pressures up to 6000 psi and available in sizes from 1/4″ to 2″, with NPT, BSP, BSPT, or SW end connections.
Product Features
Lock Open Mechanism: Integrated padlockable feature securely locks the valve in the fully open position, preventing accidental closure, tampering, or unauthorized operation.
1 PC Monoblock Construction: Single-piece body minimizes potential leak paths, enhances structural integrity, and provides a compact, space-saving design.
Interchangeable Components (IC): Internal parts including stem, ball, and seals are standardized for easy replacement and reduced spare parts inventory.
Investment Casting: Precision investment cast Stainless Steel or Carbon Steel ensures superior dimensional accuracy, smooth surface finish, and consistent quality.
F x F Female Threads: Direct mount onto male pipe ends, reducing additional fitting requirements and potential leak points.
High Pressure Capability: Engineered to withstand up to 6000 psi for demanding hydraulic, pneumatic, and process applications.
Safety-Critical Application Ready: Ideal for continuous process lines, emergency shutdown systems, critical equipment isolation, and lines where accidental closure would cause downtime or hazards.
Versatile End Connections: Available in NPT, BSP, BSPT, or SW to suit global piping standards.
Blow-Out Proof Stem: Captured stem design prevents accidental ejection under system pressure.
Quarter-Turn Operation: Simple 90° rotation for fast, positive shut-off with tactile feedback.
Bidirectional Flow: Can be installed in either direction without performance loss.
Visible Position Indication: Clear visual indication of valve position—confirmation that lock open is engaged.
Key Bullet Points (At a Glance)
Design: 1 PC (One-Piece Body) with IC (Interchangeable Components)
Safety Feature: Lock Open (Padlockable in open position)
Configuration: Female x Female (F x F) threaded ends
Pressure Rating: Up to 6000 psi
Size Range: 1/4″ to 2 inches
End Connections: NPT / BSP / BSPT / SW
Material: Stainless Steel / Carbon Steel – Investment Casting
SKU: HPBV207
