2-piece hybrid ball valve with OD tube end on one side and threaded end on the other. Direct tube-to-pipe connection. 6000 PSI. Sizes: 1/4″ to 2″ TH / 1/8″ to 1″ OD. Materials: SS/CS/Alloy/Nickel/Brass. SKU: HPBV206.
Product Description

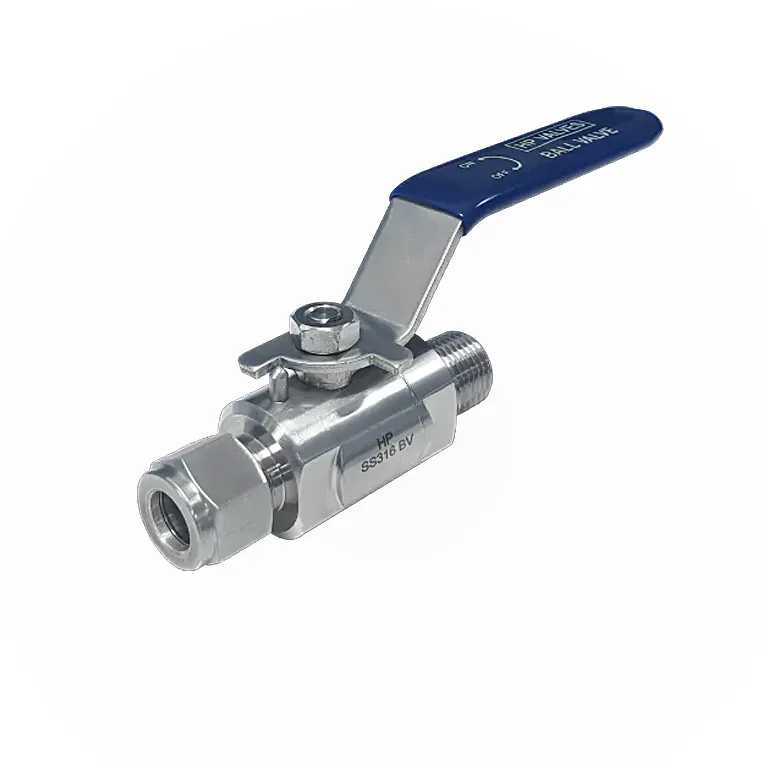

Bridge the gap between tube fittings and threaded connections with the 2 PC Design OD x TH Ball Valve (SKU: HPBV206) . Engineered with a two-piece body construction, this hybrid valve features an outside diameter (OD) tube end on one side and a female or male threaded (TH) end on the other—allowing direct connection from instrument tube runs to threaded piping, equipment ports, or manifolds without additional adapters. The 2 PC design provides excellent structural integrity while enabling moderate in-line maintenance. Rated for pressures up to 6000 psi and available in a wide range of sizes including 1/4″ to 2″ threaded ends and 1/8″ to 1″ OD (4mm to 25mm OD) tube ends, this valve is ideal for analyzer systems, sampling panels, hydraulic circuits, and process instrumentation where tube-to-pipe transitions are required. Available in Stainless Steel, Carbon Steel, Alloy Steel, Nickel Alloy, and Brass, with NPT, BSP, BSPT, SW, or Tube OD end options.
Product Features
Hybrid OD x TH Configuration: Combines a precision tube OD end (for ferrule-style compression fittings) with a threaded end (NPT, BSP, BSPT, or SW) for seamless tube-to-pipe transitions.
2 PC Body Construction: Two-piece design provides robust structural integrity while allowing access to internal components for moderate in-line maintenance.
Eliminates Transition Fittings: Directly connects tube runs to threaded ports, reducing adapter requirements, potential leak points, and installation costs.
Wide Size Range: Threaded ends from 1/4″ to 2″ and tube OD ends from 1/8″ to 1″ (4mm to 25mm) to suit diverse system requirements.
High Pressure Capability: Engineered to withstand up to 6000 psi for demanding hydraulic, pneumatic, and process applications.
Wide Material Selection: Available in Stainless Steel, Carbon Steel, Alloy Steel, Nickel Alloy, and Brass—select based on media compatibility and environmental conditions.
Versatile Thread Options: Available in NPT, BSP, BSPT, or SW threaded ends to fit global piping standards.
Tube Fitting Compatible: OD end designed for direct use with standard ferrule-type tube fittings (Swagelok®, Parker®, etc.).
Blow-Out Proof Stem: Captured stem design prevents accidental ejection under system pressure.
Quarter-Turn Operation: Simple 90° rotation for fast, positive shut-off with tactile feedback.
Bidirectional Flow: Can be installed in either orientation; confirm flow direction based on your system requirements.
Multiple Seat Options: Available with PTFE, PEEK, or other seat materials for extended temperature range (upon request).
Key Bullet Points (At a Glance)
Design: 2 PC (Two-Piece Body Construction)
Configuration: OD x TH (Tube Outside Diameter on one side / Threaded on the other side)
Pressure Rating: Up to 6000 psi
Threaded Size Range: 1/4″ to 2 inches (NPT / BSP / BSPT / SW)
Tube OD Size Range: 1/8″ to 1″ OD & 4mm to 25mm OD
End Connections: NPT / BSP / BSPT / SW / Tube OD
Material Options: Stainless Steel / Carbon Steel / Alloy Steel / Nickel Alloy / Brass
SKU: HPBV206
