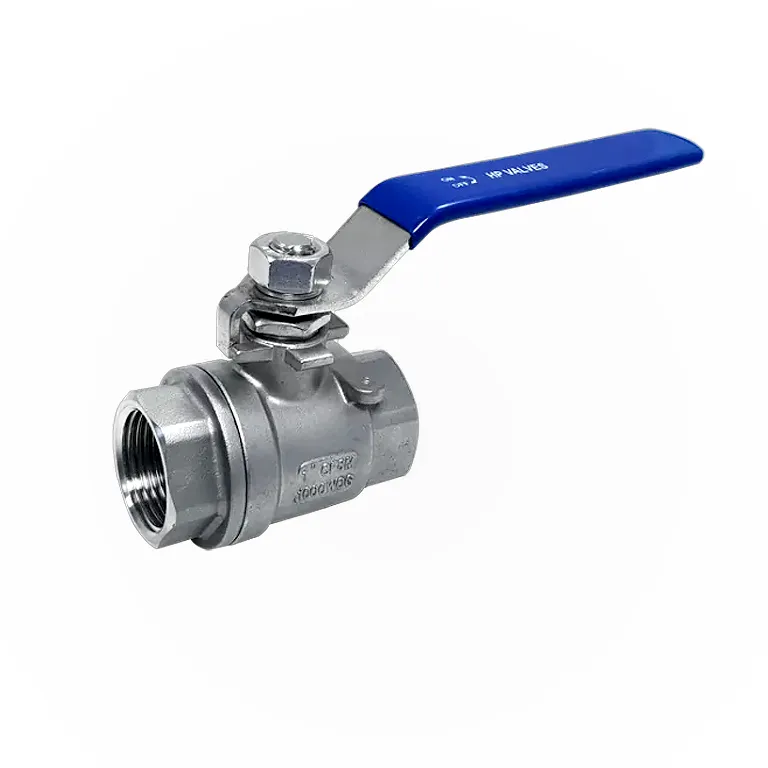

2 PC Instrumentation Ball Valve | IC Design | F x F Female Threads

Product Features

• 2 PC Body Construction: Single-piece main body with a separate bolted end cap provides excellent strength while allowing access to internal components for maintenance.

• Interchangeable Components (IC): Standardized internal parts (ball, stem, seats, seals) allow easy replacement and reduced spare parts inventory across multiple valves.

• Moderate In-Line Maintenance: End cap can be removed for seal replacement, ball inspection, or cleaning without fully disconnecting the pipeline.

• Investment Casting: Precision investment cast Stainless Steel or Carbon Steel ensures superior dimensional accuracy, smooth surface finish, and consistent quality batch after batch.

• F x F Female Threads: Direct mount onto male pipe ends, reducing additional fitting requirements and minimizing potential leak points.

• High Pressure Capability: Engineered to withstand up to 6000 psi for demanding hydraulic, pneumatic, and process applications.

• Reduced Leak Paths: Two-piece design minimizes potential leak points compared to three-piece valves while maintaining good serviceability.

• Versatile End Connections: Available in NPT, BSP, BSPT, or SW to suit global piping standards.

• Blow-Out Proof Stem: Captured stem design prevents accidental ejection under system pressure.

• Bidirectional Flow: Can be installed in either direction without performance loss.

• Quarter-Turn Operation: Simple 90° rotation for fast, positive shut-off with tactile feedback.

• Multiple Seat Options: Available with PTFE, PEEK, Delrin, or other seat materials for extended temperature and chemical compatibility (upon request).
