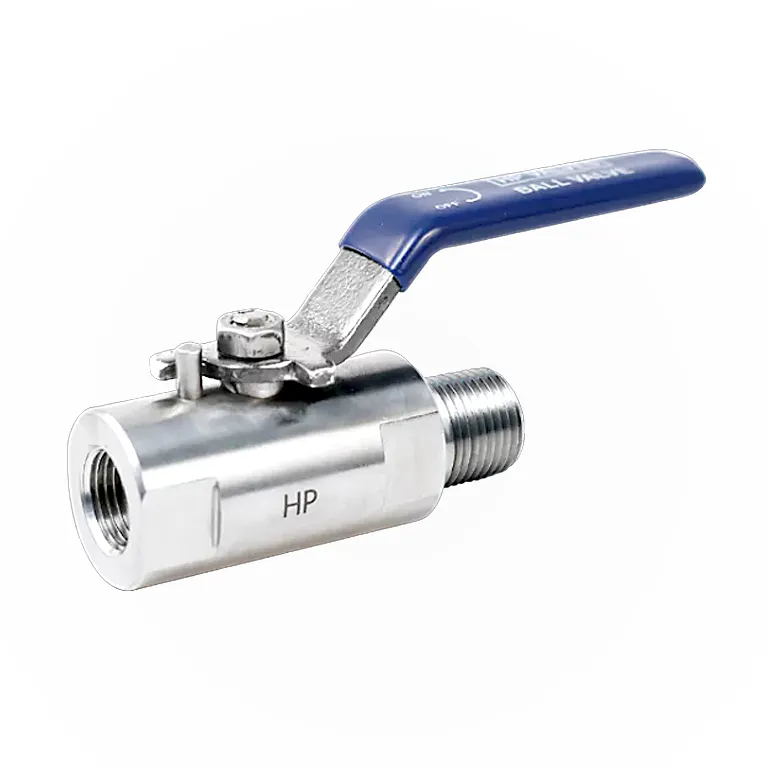

2 PC Instrumentation Ball Valve | M x F (Male x Female) Threads

Product Features

• Mixed M x F Thread Configuration: Male thread on one end, female thread on the other—enables direct connection between components with different thread genders without additional adapters.

• Space-Saving Design: Eliminates the need for separate bushing or adapter fittings, reducing overall assembly length and minimizing potential leak points.

• 2 PC Body Construction: Two-piece design provides robust structural integrity while allowing access to internal components for moderate in-line maintenance.

• Simplified Installation: Male end screws directly into female ports (equipment, manifolds, valves), while female end accepts male pipe connections—streamlining assembly.

• High Pressure Capability: Engineered to withstand up to 6000 psi for demanding hydraulic, pneumatic, and process applications.

• Wide Material Selection: Available in Stainless Steel, Carbon Steel, Alloy Steel, Nickel Alloy, and Brass—choose based on media compatibility, temperature, and corrosion requirements.

• Versatile Thread Options: Available in NPT, BSP, BSPT, or SW to suit global piping standards.

• Blow-Out Proof Stem: Captured stem design prevents accidental ejection under system pressure.

• Bidirectional Flow: Can be installed in either direction; confirm orientation based on your system requirements.

• Quarter-Turn Operation: Simple 90° rotation for fast, positive shut-off with tactile feedback.

• Multiple Seat Options: Available with PTFE, PEEK, Delrin, or other seat materials for extended temperature and chemical compatibility (upon request).
