3-piece body ball valve with interchangeable components (IC). F x F female threads for easy inline maintenance. 6000 PSI. Sizes 1/4″ to 2″. NPT/BSP/BSPT/SW. SKU: HPBV224
Product Description

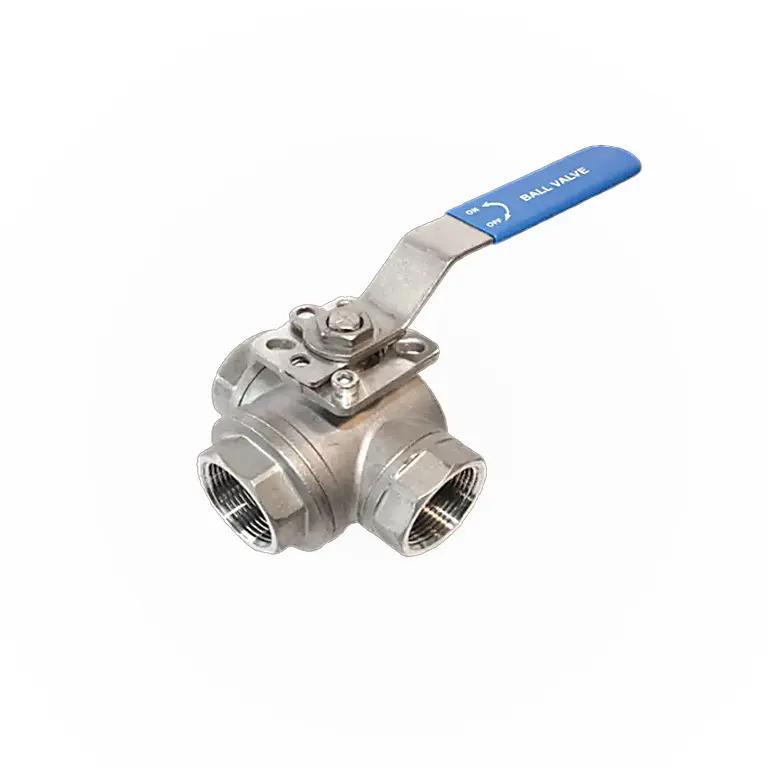

Achieve versatile directional flow control with the 3 Way Type (IC) Instrumentation Ball Valve (SKU: HPBV225) . Engineered with interchangeable components (IC), this three-way valve allows for flexible flow patterns including diverting, mixing, or shut-off, depending on the ball porting (L-port or T-port). The female x female (F x F) threaded ends enable direct inline mounting onto male pipe connections without additional adapters. Rated for pressures up to 6000 psi and available in sizes from 1/4″ to 2″, this valve is ideal for hydraulic circuits, chemical injection systems, pressure bypass lines, sampling panels, and process instrumentation where multi-port functionality is required. Choose from NPT, BSP, BSPT, or SW end connections to suit your piping standard.
Product Features
3-Way Multi-Port Functionality: Allows flow diversion (L-port) or mixing/combining (T-port) based on ball configuration—specify your requirement.
Interchangeable Components (IC): Internal parts including seals, stem, and ball are standardized for easy replacement and reduced spare parts inventory.
F x F Female Threads: Direct mount onto male pipe ends, simplifying installation and reducing fitting requirements.
High Pressure Capability: Engineered to withstand up to 6000 psi for demanding hydraulic and process applications.
Compact, Space-Saving Design: Combines multiple valve functions into a single body, reducing piping complexity and potential leak points.
Versatile End Connections: Available in NPT, BSP, BSPT, or SW to suit global piping standards.
Blow-Out Proof Stem: Captured stem design prevents accidental ejection under system pressure.
Quarter-Turn Operation: Simple 90° or 180° rotation for fast, intuitive flow switching.
Bidirectional Flow: Suitable for various flow patterns depending on porting selection.
Multiple Material Options: Available in various alloys and seat materials (PTFE, PEEK, etc.) upon request.
Key Bullet Points (At a Glance)
Type: 3 Way (Three-Port)
Design: IC (Interchangeable Components)
Configuration: Female x Female (F x F) threaded ends
Pressure Rating: Up to 6000 psi
Size Range: 1/4″ to 2 inches
End Connections: NPT / BSP / BSPT / SW
Material of Construction: N/A (specify upon order)
SKU: HPBV225
