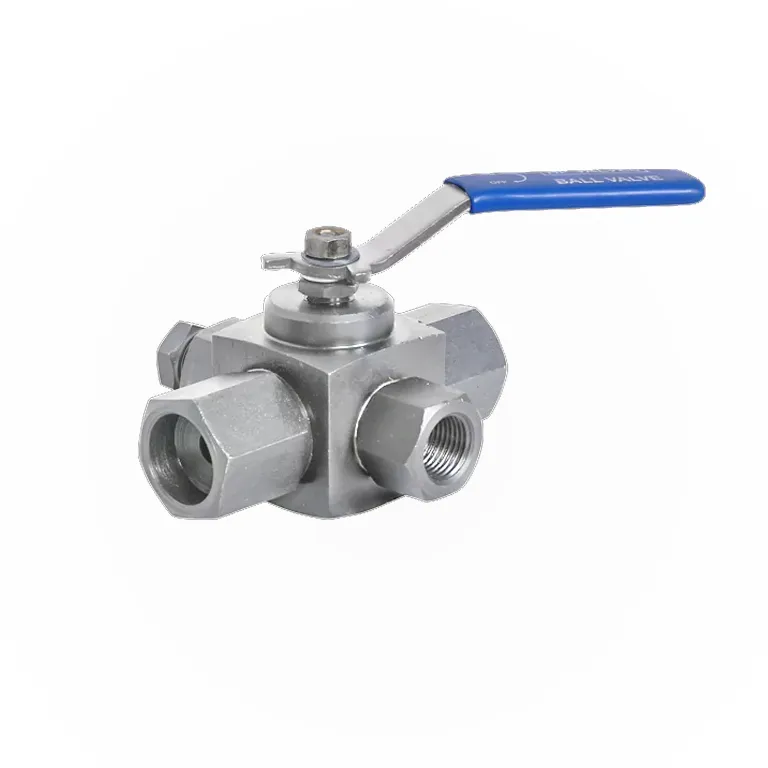

4 Way Instrumentation Ball Valve | F x F Female Threads | 6000 PSI

Product Features

• 4-Way Multi-Port Functionality: Four-port design enables flow reversal, cross-port switching, line isolation, and pressure source redirection—perfect for double-acting hydraulic or pneumatic actuator control.

• Versatile Flow Patterns: Can be configured with various ball porting options (X-port, W-port, two independent L-ports, or 180° reversal pattern) to suit your specific circuit requirements.

• F x F Female Threads: Direct mount onto male pipe ends, simplifying installation and reducing additional fitting requirements and potential leak points.

• Wide Material Selection: Available in Stainless Steel, Carbon Steel, Alloy Steel, Nickel Alloy, and Brass—choose based on media compatibility, temperature, and corrosion resistance.

• High Pressure Capability: Engineered to withstand up to 6000 psi for demanding hydraulic, pneumatic, and process applications.

• Compact, Integrated Design: Replaces multiple two-way or three-way valves, significantly reducing piping complexity, panel space, installation costs, and potential leak points.

• Versatile End Connections: Available in NPT, BSP, BSPT, or SW to suit global piping standards.

• Quarter-Turn Operation: Simple 90° or 180° rotation for fast, intuitive flow switching with clear position indication.

• Blow-Out Proof Stem: Captured stem design prevents accidental ejection under system pressure.

• Bidirectional Flow: Suitable for various flow patterns; confirm porting configuration for your specific application.

• Multiple Seat Options: Available with PTFE, PEEK, Delrin, or other seat materials for extended temperature and chemical compatibility (upon request).
