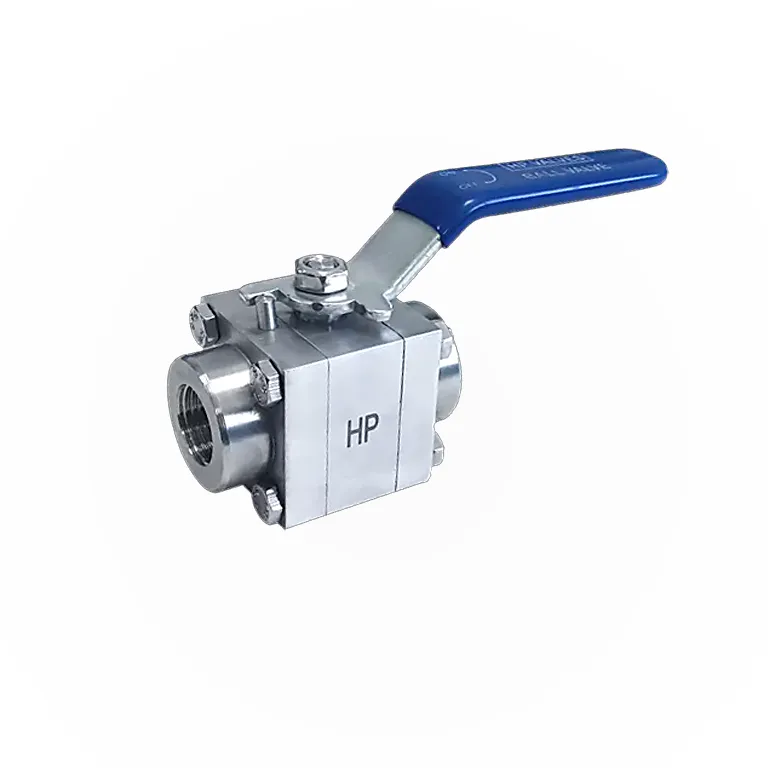

Bolted Body Ball Valve | F x F Female Threads | 6000 PSI

Product Features

• Bolted Body Construction: End caps are secured to the center body with bolts, providing a strong, reliable joint that resists pressure and vibration.

• Tool-Friendly Maintenance: Standard bolted assembly allows disassembly with common hand tools—no special wrenches or fixtures required.

• Easy In-Line Access: Bolts can be removed to access internal components (ball, seats, seals) without fully disconnecting the pipeline.

• F x F Female Threads: Direct mount onto male pipe ends, eliminating additional adapter fittings and reducing installation time.

• High Pressure Capability: Engineered to withstand up to 6000 psi for demanding hydraulic and process applications.

• Wide Material Selection: Available in Stainless Steel, Carbon Steel, Alloy Steel, Nickel Alloy, and Brass—choose based on media compatibility, temperature, and corrosion requirements.

• Versatile End Connections: Available in NPT, BSP, BSPT, or SW to suit global piping standards.

• Blow-Out Proof Stem: Captured stem design prevents accidental ejection under system pressure.

• Bidirectional Flow: Can be installed in either direction without performance loss.

• Quarter-Turn Operation: Simple 90° rotation for fast, positive shut-off with tactile feedback.

• Multiple Seat Options: Available with PTFE, PEEK, Delrin, or other seat materials for extended temperature and chemical compatibility (upon request).

• Secure Fastening: Bolted design ensures consistent sealing under pressure cycling and thermal variations.
