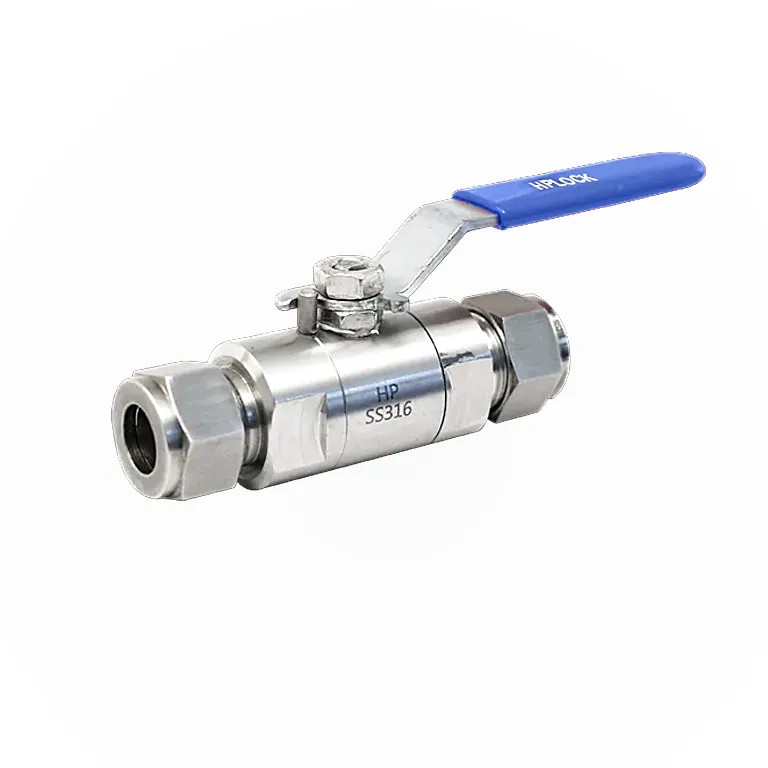

OD x OD Instrumentation Ball Valve | Tube OD Ends

Product Features

• OD x OD Tube End Configuration: Precision machined outside diameter ends designed for direct insertion into compression tube fittings—no adapters required.

• Ultra-High Pressure Capability: Engineered to withstand demanding pressures up to 9000 psi for critical high-pressure instrumentation and hydraulic applications.

• Wide Size Range: Available in imperial sizes from 1/8″ to 1″ OD and metric sizes from 4mm to 25mm OD to suit global tubing standards.

• Leak-Free Fitting Compatibility: Seamlessly integrates with popular ferrule-style tube fittings (Swagelok®, Parker A-Lok®, etc.) for vibration-resistant, reliable connections.

• Reduced Leak Paths: Direct tube end connections eliminate threaded adapters, significantly reducing potential leak points and improving system integrity.

• Wide Material Selection: Available in Stainless Steel, Carbon Steel, Alloy Steel, Nickel Alloy, and Brass—match your valve material to your tube and fitting material for optimal performance.

• Compact Installation: No adapter fittings means shorter overall assembly length, ideal for space-constrained instrument panels.

• Quarter-Turn Operation: Simple 90° rotation for fast, positive shut-off with clear visual position indication.

• Blow-Out Proof Stem: Captured stem design prevents accidental ejection under extreme system pressure.

• Bidirectional Flow: Can be installed in either direction without performance loss.

• Multiple Seat Options: Available with PTFE, PEEK, or other seat materials for extended temperature range and chemical compatibility (upon request).
